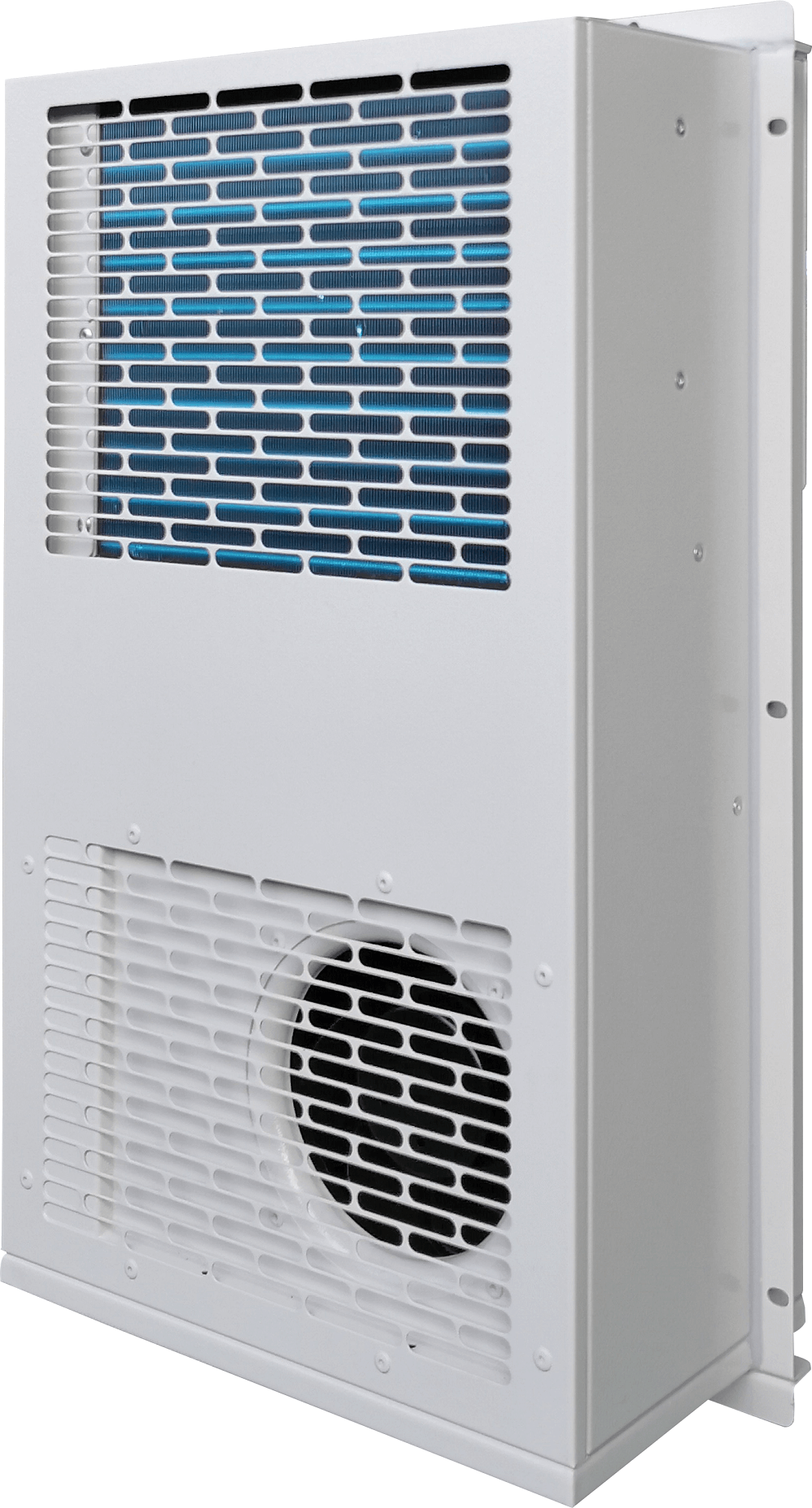

DC Air-Conditioner

300W/500W/600W/800W/1000W/1500W/2000W/2500W/3000W/3500W/4000W and 5000W Cooling Capacity As standard think of redundancy split cooling capacity in two 2 units (N+1)
DC 48V or AC 110V/230V Versions

Product Introduction and range of application

This series of DC air-conditioner products can be widely used in enclosed area for climate control, such as; Data Centers,, Communication, wireless communication in or out door cabinets with IP55 or IP65, battery cabinet, lithium battery, power, industry control in our outdoor cabinets ICT & Mobile telecom Data Center applications with redundancy ducted versions or plug and play installations in walls IP55 or IP65 non air- ducted or air-ducted plug and play modules versions for direct installation.

Direct limited PDF links view or download

DC Air-conditioner & special 110V

DC Models 600W, 1000W, 2000W, 3000W, to 4000W Cooling Capacity

Download PDF below

Product Design Feature

  • Designed with all DC driven components like fans, compressor;
  • DC precise temperature control through inverter digital regulation of compressor, fans.
    Power supply voltage range: DC44~59 Volt alternative AC 110V or 230V optionally
  • A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition.
  • Low power consumption design with EER≥3.5, SEER≥ 5.5
  • Controller includes Modbus RS485, TCP IP socketand and 5-10 diffrent catagory alarms. Optionally modem and antenna can be included, if Hunterhex lithium batteries are used they have inbuilt CANbus.
  • Operateetes as standard from very warm or very cold weather conditions up to minus -50to +55oC and in Farenhait –
  • Global certifications: CE, TÜV, CQC, SONCAP, UL and more local certifications are available please ask us if any certification is missing and we can assist you in the process.
  • Energy saving reach to comparing with A.C. AC version product.
  • IP65 environment protection & fit for T1, T2 T3 high temperature working condition by using of R134a refrigerant gas.
  • Operateetes as standard from very warm or very cold weather conditions up to minus -50to +55oC and in FarenhaitDC Air-Conditioner 400W to 4000W standard think of redundancy 2x units and 48V or AC 110V/230V/380V Versions
  • Designed with all DC driven components like fans, compressor;
  • DC precise temperature control through inverter Hunterhex digital DC controller with High International Brands of compresso and fans.
  • A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition.
  • Global certifications: CE, TÜV, CQC, SONCAP, UL and more local certifications are availableask us if any certification is missing and we can assist you in the process.
  • Energy saving reach to 50% comparing with A.C. VAC version product.
  • IP55 environment protection & fit for T1, T2 T3 high temperature working
  • All units with Grenn ga scondition by using of R134a refrigerant gas.
  • Operateetes as standard from very warm or very cold weather conditions up to minus -50 to +55oC
  • 600W to 4000W standard think of redundancy 2 units in smaller size N+1
  • Voltage DC 48V or AC 110V/230V/380V Versions with combination of free-cooling with Heat Exchanger (HEX) or pure DC Air-Conditioner.
  • The best DC cooling for Grid-tied and Off-grid solutions operates with AC grid ON/OFF and solar, wind, and DG diesel generator etc, hybrid power system with DC LFP Battery banks that we can supply loose or in Oudoor Cabinets.
  • Strict process control and international brand parts deployed to ensure high quality and reliability of this product.
  • Multiple self protection design.
  • LED Display, all the settings can be changed at the field.
  • Dry contact alarm output,NO/NC optional.
  • Intelligent controller show status and communicate remotel.
  • with RS485 ModBus protocol.
  • IP65 protection to avoid moisture, dust and water.
  • Operate and work in high T3 55oC ambient temperatures.
  • Completely safety.
  • Designed for easy installation and service.
  • Optional modem function for smart mobile monitering.
  • Plug & Play installatio.
  • Advantages
    • Close loop cooling mod.
    • Automatic Emergency & Power failure DC fan cooling.
    • High cooling efficiency & capacity.
    • Low maintenance cost.
