AC DC 19″ RACK MOUNTED RECTIFIER POWER SYSTEMS 4kW, 8kW to 12kW, Smart System 4 rectifier slots configuration 4 x 1kW, 4 x 2kW or 4 x 3kW modules

Smart SYS HHEX-SL-1300R48 Embedded Power System AC/DC

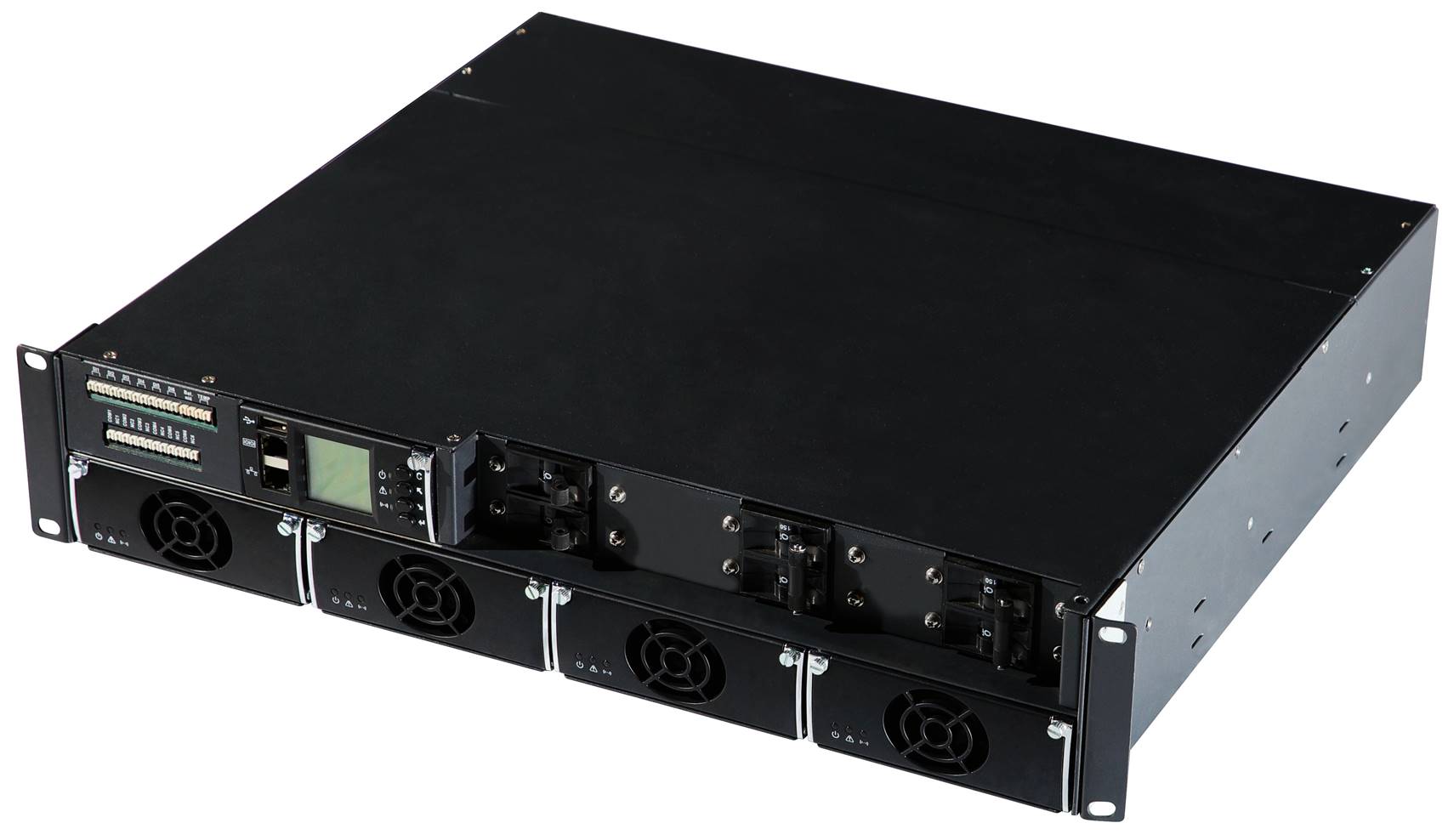

PICTURE SYS HHEX-SL-1300R48:

FEATURES SYS HHEX-SL-1300R48:

19’’2U sub-rack, easy to be embedded into all standard telecom equipment 8kW system capacity Up to 0.99 power factor Intelligent fan-cooling . Rectifier modules hot-s wap N+1 rectifier m odule redundancy Advanced b atteries monitori ng and management ECO mode High power density.

INTRODUCTION:

Introduction Smart SYS SL-1300R48 system is and intelligent power system, It can house up to 4*2KW rectifiers and 1*SC500 controller.

Dry contact use front access and front operation.AC input and DC output use rear access and rear connection. With compact design, easy installation Two levels Low Voltage Disconnect (LVD) protection Two battery MCBs Compatible with rectifiers of the same size

APPLICATION

Fiber optic network – Access network Satellite communication ground station .- Transmission equipment – Mobile communication ESS

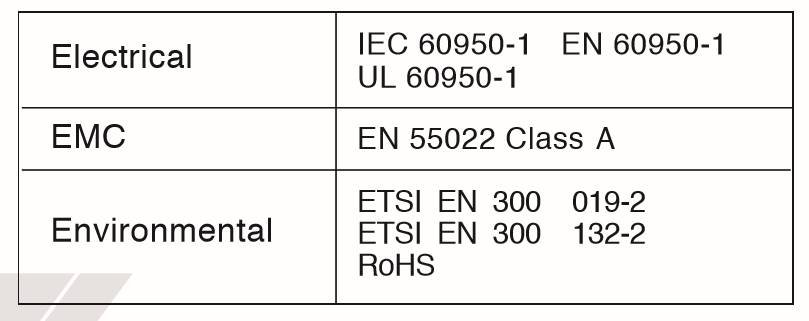

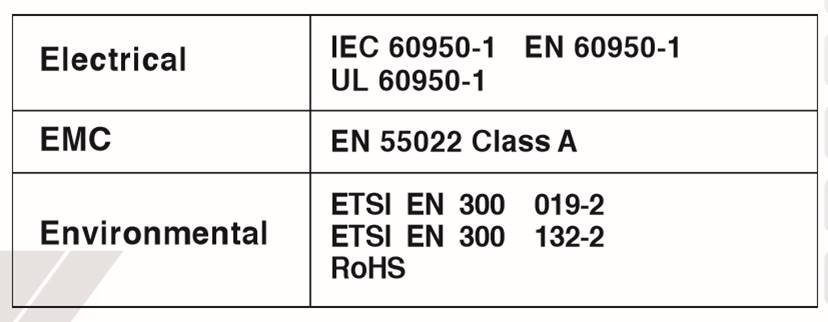

APPLICABLE STANDARDS

Smart SYS HHEX-SL-1300R48 Embedded Power System AC/DC

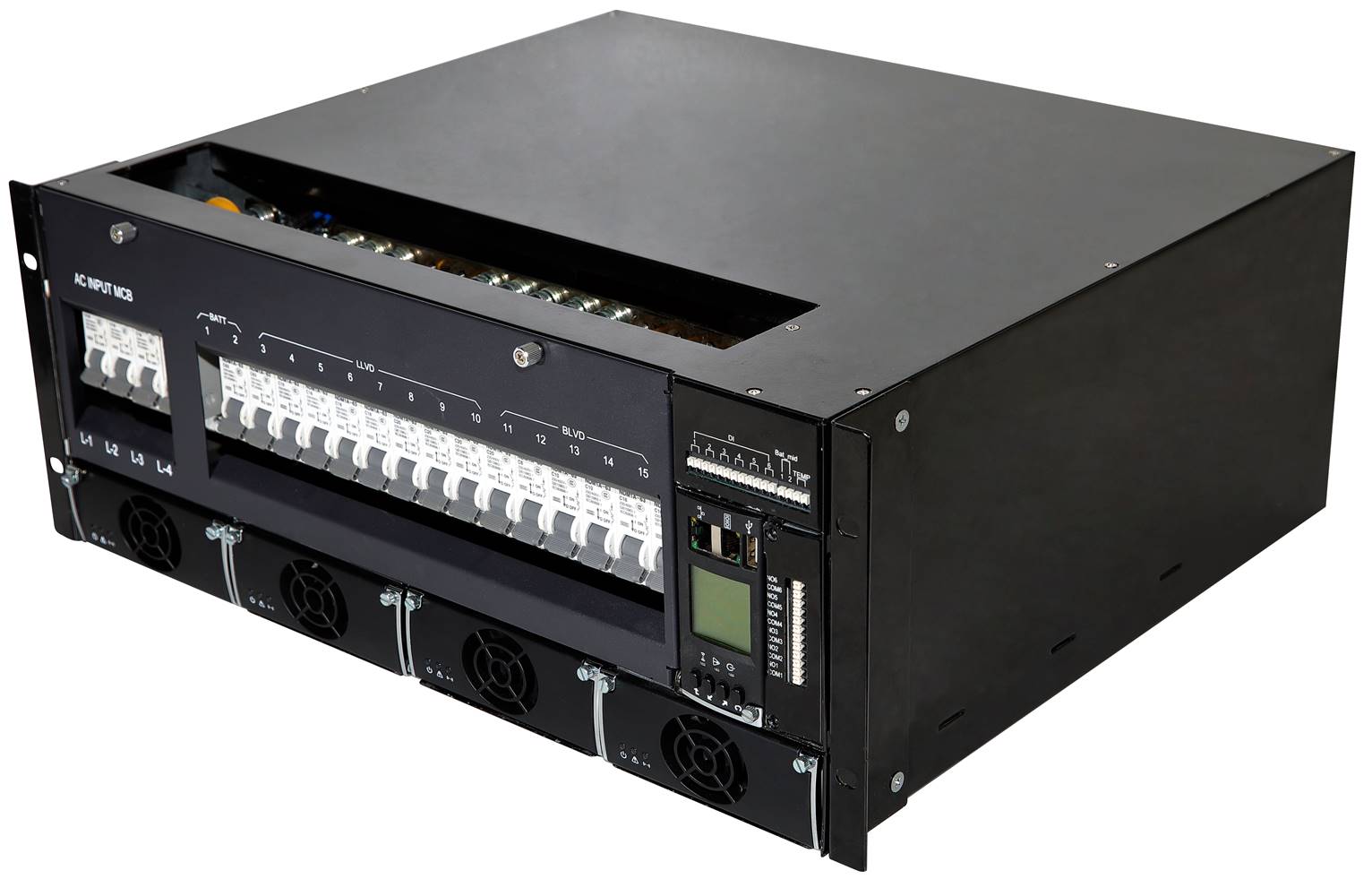

PICTURE SYS HHEX-SL-1500R48:

FEATURES SYS HHEX-SL-1500R48:

19’’4U sub-rack, easy to be embedded into all standard telecom equipment Up to 12kW system capacity Up to 0.99 power factor Intelligent fan-cooling. Rectifier modules hot-swap N+1 rectifier module redundancy Advanced batteries monitoring and management ECO mode High power density

INTRODUCTION:

Smart SYS SL-1500R48 system is a compact and intelligent power system, It can house up to 4*3KW rectifiers and 1*SC500 controller. AC input, DC output and dry contact use front access and front operation With compact design, easy installation Two levels Low Voltage Disconnect (LVD) protection Two battery MCBs Compatible with rectifiers of the same size

APPLICATION

Fiber optic network – Access network – Satellite communication ground station – Transmission equipment – Mobile communication ESS


APPLICABLE STANDARDS

Controller Module HHEX-SL-601

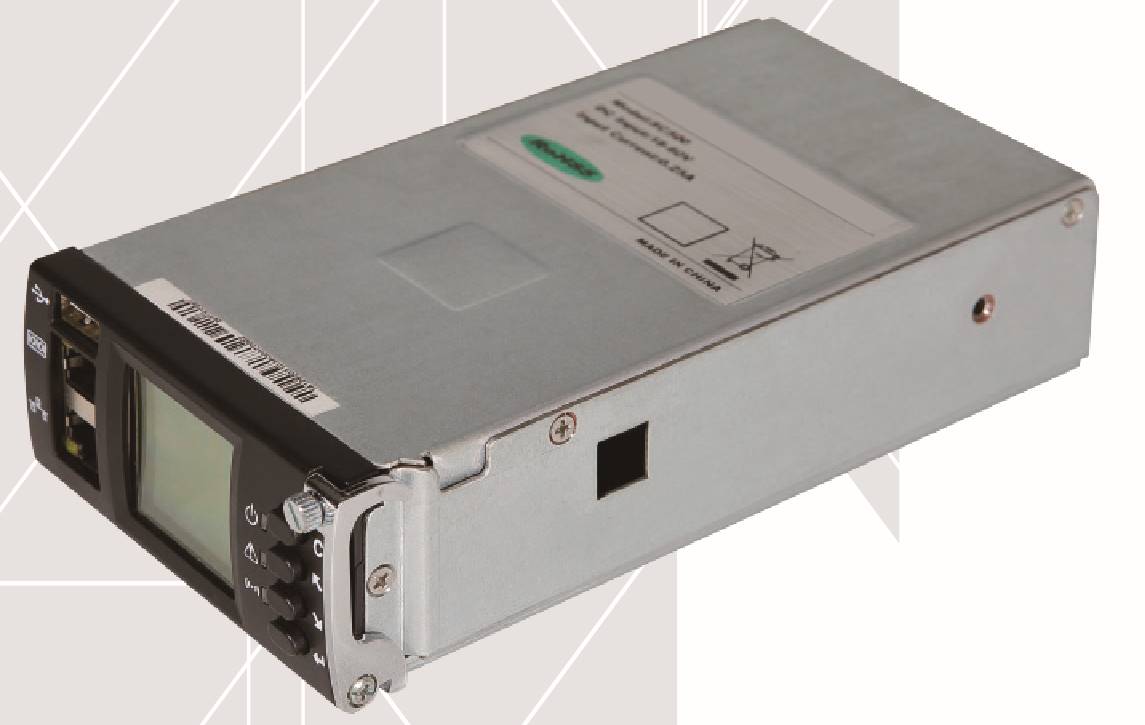

PICTURE Controller Module HHEX-SL-601

KEY FEATURES

The standard 1U*2U structure can save more space. RS485 or Ethernet interface for PC connection locally or remote, and the stronger WEB server is recommended. Front panel LCD and four buttons for on-site using without PC Easily configurable file upload/download via USB or PC Easily update software via controller or USB or PC GPRS or 3G function is optional Advanced battery management, both Lead-acid battery and Lithium-battery Up to 86 digital outputs can be supported Up to 46 digital inputs can be supported Multiple LVDs control Battery mid-point m onitoring Authority management and operator access levels protection Event log(up to 90000 records, totally) Alarm log(up to 10000 records) More user-selectable languages Programmable Logic Control(PLC) function, more flexible requirments can be supported.

DESCRIPTION

The advanced SL-601 controller is a powerful and cost-effective module, developed for monitoring and controlling a wide range of DC power supply systems The controller can be used to communicate small, medium and large power systems. It has a friendly and easy to operate interface User can operate the system via the four front keys and the LCD-display User can monitor and control the system by using the SNMP via ethernet.

APPLICATIONS

Wireless communication – Broadband and network access – Satellite communication ground station – 3G,4G base station – Other telecom applications.

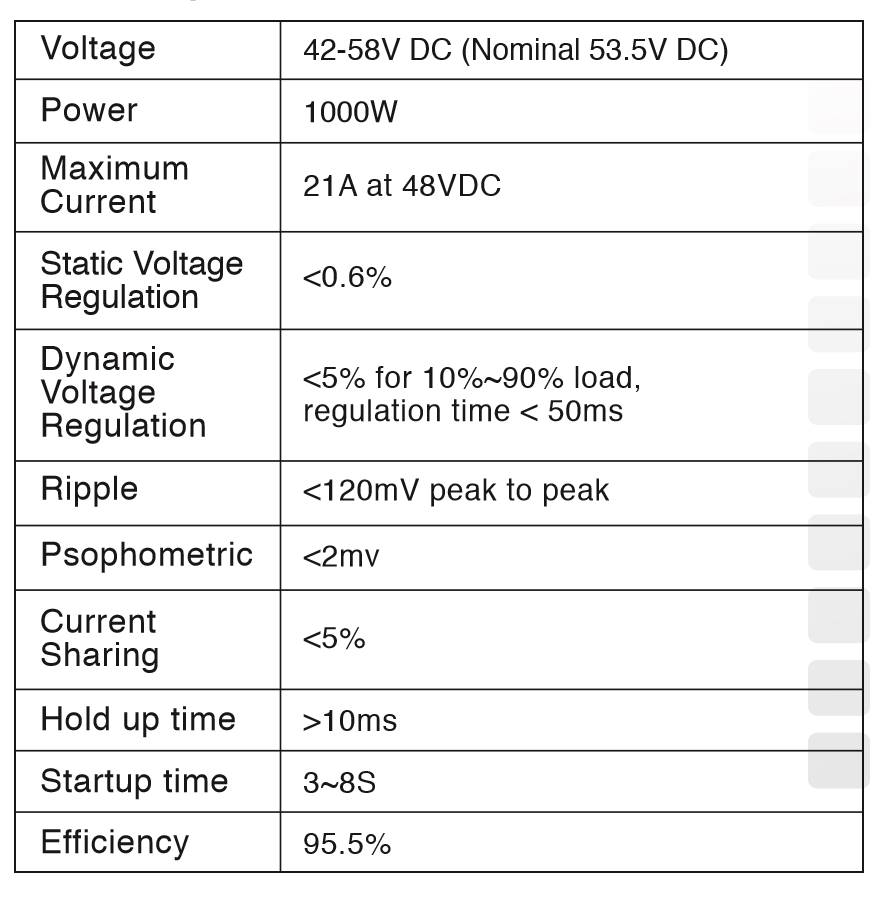

RECTIFIER MODULE SmartPower III Series 48/1000HE

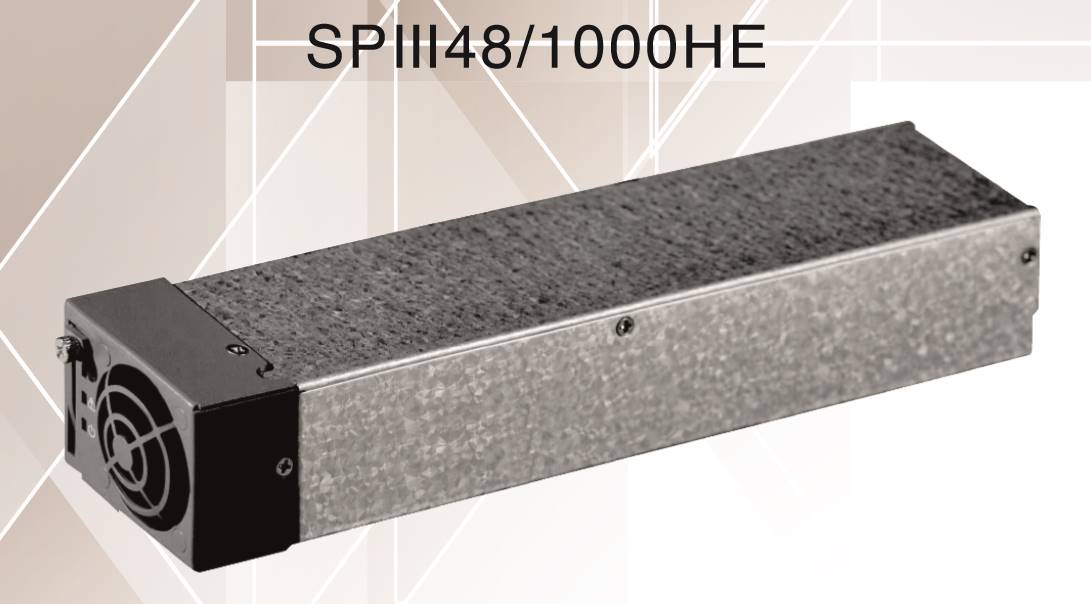

PICTURE SP III 48/1000HE

FEATURES

High efficiency and high power density 95.5% efficiency and 28.64W/in3 power density.
Digital control Digital primary and secondary control, realize excellent monitoring and regulation.
High reliability design One fan front-to-back air flow with latest thermal solution and experienced design.
Excellent EMC performance Lower interference and excellent susceptibility give module better compatibility.
Global approvals Meet CE, UL and TUV standard.

INTRODUCTION

SP III 48/1000HE is a digital rectifier with outstanding reliability, efficiency and power density. It is specially designed for telecom, network access, services and so on

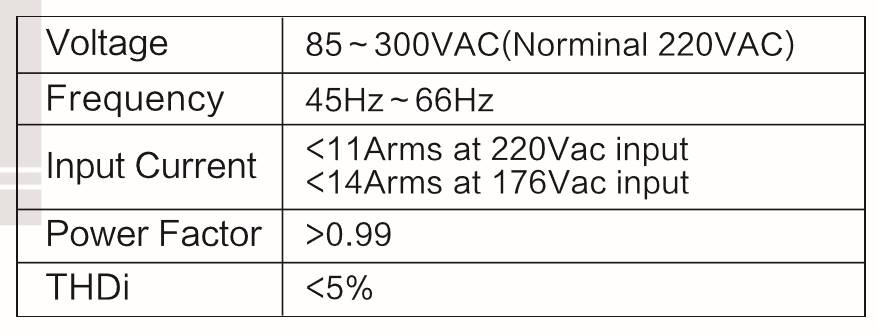

INPUT


OUTPUT

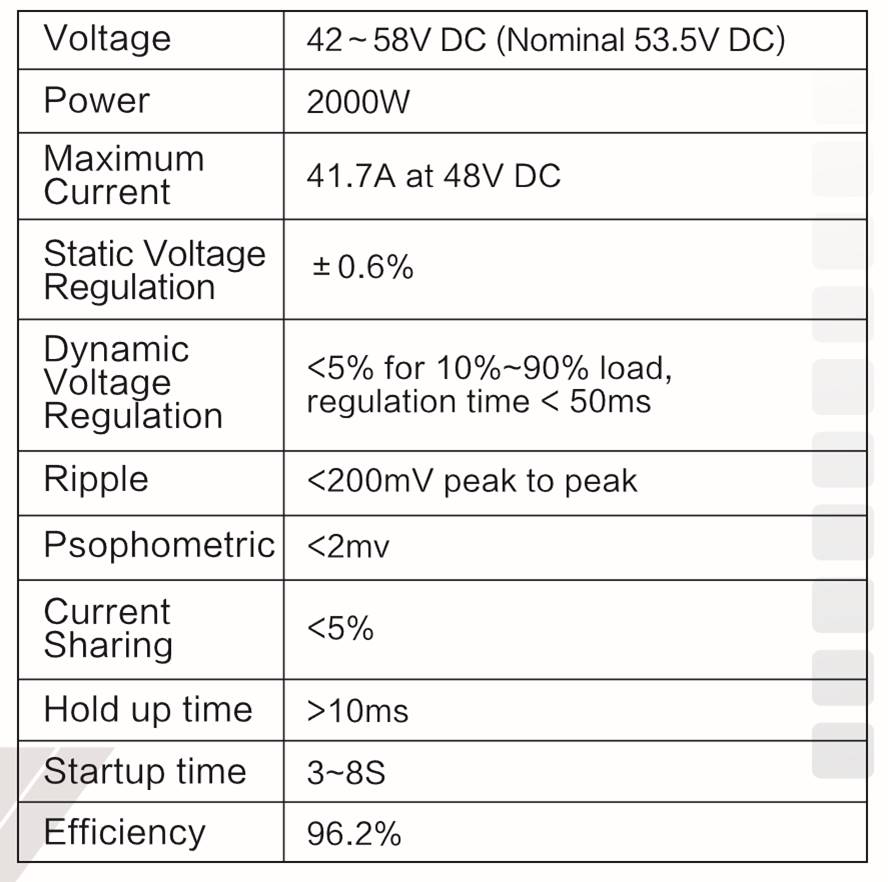

RECTIFIER MODULE SmartPower ll Series HHEX-SP-II48/2000HE

PICTURE HHEX-SP-II48/2000HE

FEATURES

High efficiency and high power density 96,2% efficiency and 22.40W/in3 power density.
Digital control Digital primary and secondary control, realize excellent monitoring and regulation.
High reliability design One fan front-to-back air flow with latest thermal solution and experienced design.
Excellent EMC performance Lower interference and excellent susceptibility give module better compatibility.
Global approvals Meet CE, UL and TUV standard.

INTRODUCTION

SP-ll-48/2000HE is a digital rectifier with outstanding reliability, efficiency and power density. It is specially designed for telecom, network access, services and data center applications

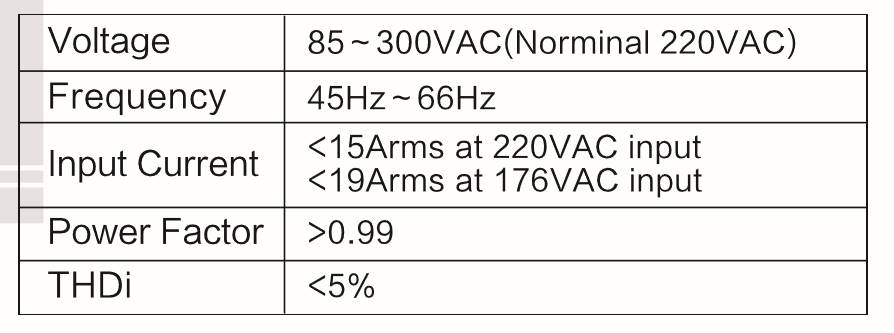

INPUT


OUTPUT

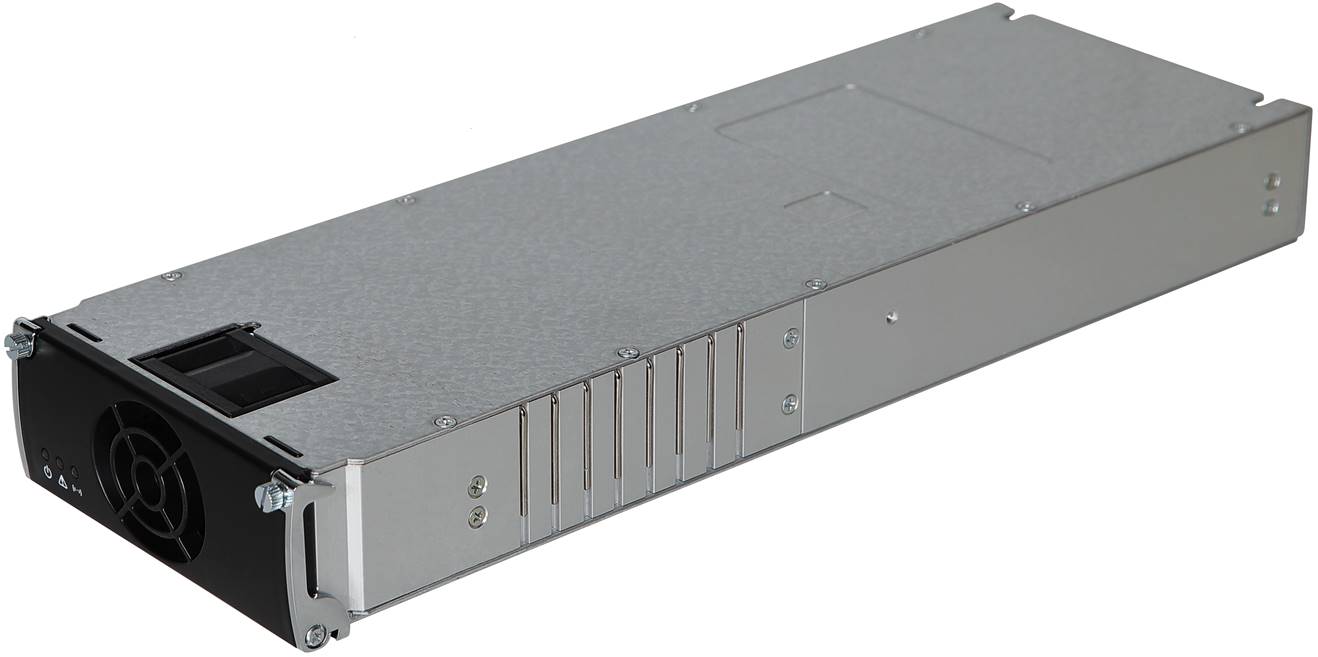

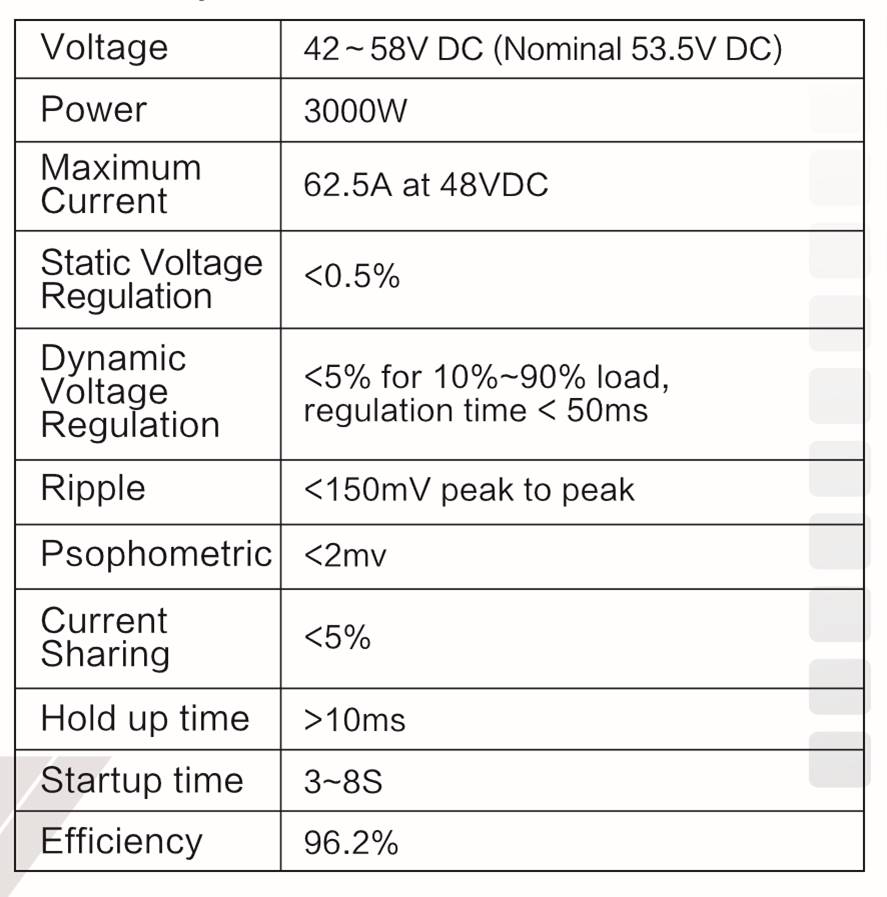

RECTIFIER MODULE SmartPower ll Series HHEX-SL-3000HE

PICTURE Smart Power ll HHEX-SL-3000HE

FEATURES

High efficiency and high power density 96,2% efficiency and 33.43W/in3 power density.
Digital control Digital primary and secondary control, realize excellent monitoring and regulation.
High reliability design One fan front-to-back air flow with latest thermal solution and experienced design.
Excellent EMC performance Lower interference and excellent susceptibility give module better compatibility.
Global approvals Meet CE, UL and TUV standard.

INTRODUCTION

HHEX-SP-ll-48/3000HE is a digital rectifier with outstanding reliability, efficiency and power density. It is specially designed for telecom, network access, services and data center applications.

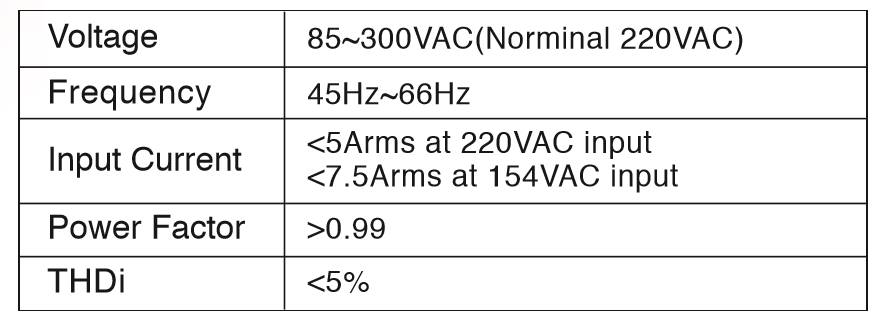

INPUT


OUTPUT
