Data & ICT Cooling

HUNTERHEX® Module Data Center & MINI ICT Precision
Cooling Solutions ICT In-Row Cooling – Application Advantages
Hot spot management

Hunterhex T In-Row cooling is considered as an efficient way to manage high density servers, or hot spots management:

  • The configuration flexibility, easy expansion of the construction of computer room
  • The cold air directly to the equipment, and greatly raise the direct expansion system of evaporation temperature or water temperature of chilled water system, energy saving
  • The application of converter compressor technology in DX, high efficiency and energy saving, that can adjusting the cooling output according to the heat

Flexibility and modular design

The In-Row conditioner is designed for the server cabinet of data center:

  • 300mm and 600mm width, 1000-1200mm depth
  • Operate automatically according to the usual heat load
  • Modular unit design, can meet the needs of the rapid upgrading of data centers

NOCT: Irradiance 800W/m2, Ambient temperature 20°C, Wind Speed 1 m/s

Download pdf

Free Cooling

The CW system can be applied to cold water at 15°C, which is convenient for low temperature areas in winter and fully utilizes natural cooling, DX system can choose iFree cooling module, which is convenient for low temperature areas in winter, fully utilize natural cooling, reduce the running time of compressor, and save energy more fully.

Converter Technology

DX unit using frequency conversion technology, the well-known inverter scroll compressor, according to the real-time load to adjust the motor frequency, so as to optimize performance when at the part load, Compared with common fixed frequency compressor, converter compressor has the following advantages:

  • Benefit from the compressor’s frequency rise control function, the cooling speed is faster
  • Soft start function can reduce the starting current
  • Small vibration and low noise during running
  • Higher efficiency running In part load

Technology advantages

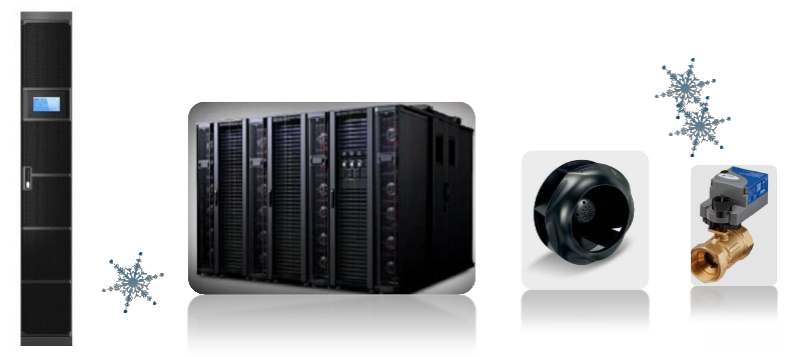

EC Fan

Applies to all products EC fan can reduce running noise and energy consumption, and can operate according to the real-time heat load, reduce the operation cost of the unit and improve the service life of the fan:

  • The reduced running noise
  • The lower operating power
  • The fan running state can be monitored at all times

Electronic Expansion Valve EEV

DX unit using well-known brands of EEV, coordinate the inverter compressor more perfect operation, according to the change of load, flow control is more accurate, more efficient, the internal temperature can be more stability.

Flow Control Valve Chilled Water (CW)

Flow control valve (Chilled Water)
CW units are equipped with well-known flow control valves and actuators

  • The high KV value, small pressure drop loss
  • The spool state feedback function, realizing the perfect inspection and monitoring

High efficiency heat exchanger

Applies to all products; optimized process design, high heat transfer efficiency, low system resistance and low air resistance, and better system performance Full solder joint leak detection to ensure the system does not leak before leaving the factory

E-Mate Controller

The E-Mate Controller :

  • The 7″ LCD touch screen, full information display
  • The parameters can be set, 3 level password management
  • The running state query
  • The management records and curve for querying and download
  • The PID control, dynamic proportional integral management
  • The maximum 16 units networking

Hunterhex – RW – Chilled Water (CW) for in row cooling

Profit from the special heat exchanger design and the EC fan application, HRUS-RW CW units are excellent in both performance and energy efficiency

  • Latest EC fans, high efficient
  • Higher efficient, rated EER45,SHR=1
  • Each fan are equipped with independent switch, convenient maintenance
  • 7 ” LCD touch screen, full information display
  • The special design and optimization of heat exchangers, be higher efficiency and smaller flow resistance
  • Equipped with multi inlet and outlet air temperature sensor and return air humidity sensor
  • RS485 port, Compatible with TCP/IP protocol, the maximum 16 units networking
  • 7~15 chilled water be available  The low pressure loss of chilled water flow(<100kPa
  • Double power supply, heating, humidifying, dehumidification, condensate water pump are optional
  • Control target optional (outlet air temperature, return air temperature or remote temperature), convenient for application
  • The air guide plate is optional, which is convenient for multi direction air supply
  • Cooling Capacity: 25~60Kw

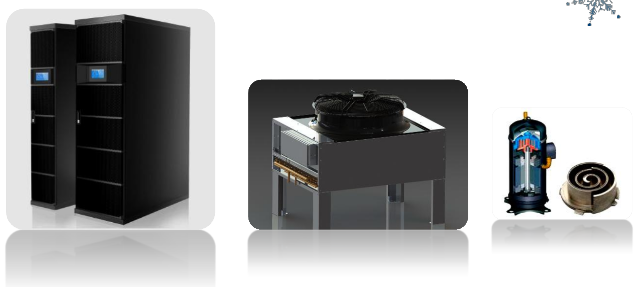

Hunterhex – RF – DX for in row cooling

Profit from the latest converter compressor and the EC fan application, HRUS-RF DX units are excellent in both performance and energy efficiency

  • DC converter compressorIn indoor unit),R410a refrigerant
  • EEV precise for flow control
  • Latest EC fanshigh efficient
  • Higher efficient rated EER3.5,SHR=1
  • Each fan are equipped with independent switch, convenient maintenance
  • 7 ” LCD touch screen, full information display
  • Equipped with multi inlet and outlet air temperature sensor and return air humidity sensor
  • RS485 port, Compatible with TCP/IP protocol, the maximum 16 units networking
  • The outdoor unit has all aluminum housing, strong corrosion resistance, and can be installed horizontally or vertically to save space
  • Double power supply, heating, humidifying, dehumidification, condensate water pump are optional
  • Control target optional (outlet air temperature, return air temperature or remote temperature), convenient for application
  • Two ways can be used for connecting pipes: up or down
  • The air guide plate is optional, which is convenient for multi direction air supply
  • Low temperature module is optional, convenient for low temperature area application
  • Extension module is optional, convenient for long distance installation
  • Cooling Capacity:25~40Kw

HUNTERHEX® Module Data Center & MINI ICT Precision Cooling Solutions

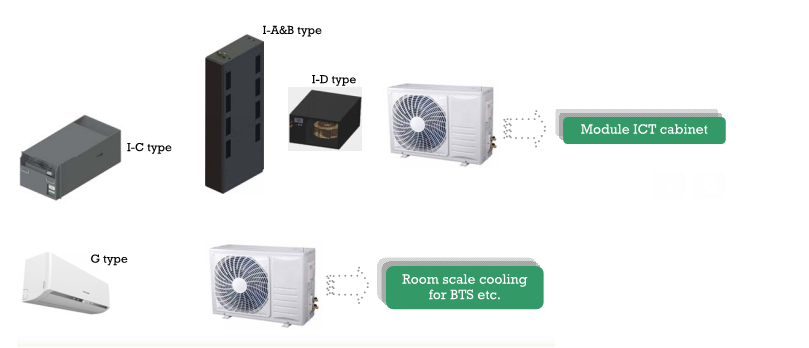

48V DC Split Unit type and 230V AC Modules & Types

  • G-Series: On Wall mounting split unit type with 48VDC power supply
  • I-A series: In Row mounting split unit type with 48VDC power supply
  • I-B series: In Row mounting split unit type with 220VAC power supply

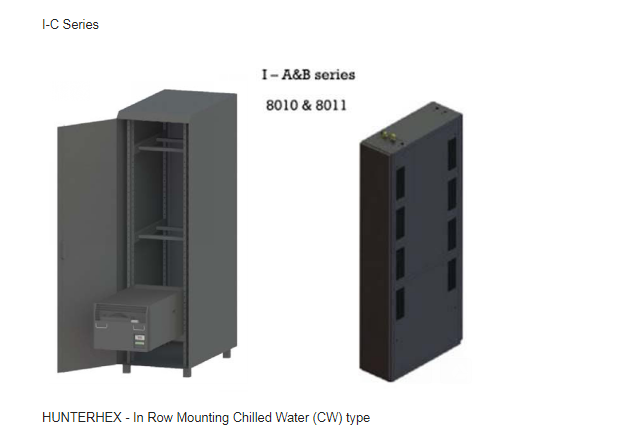

  • I-C series: In Rack mounting compact type with 220VAC power supply
  • I-D series: In Rack mounting split unit type with 220VAC power supply
